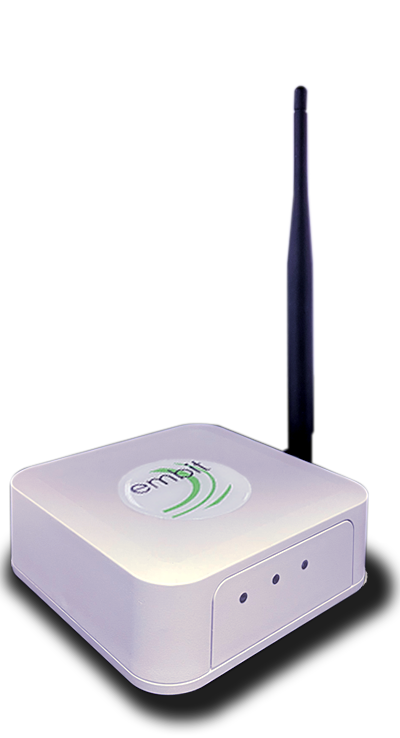

EMB-Fem2GW Miner-I
EMB-Fem2GW Miner-I is the indoor version of the Embit Helium Miner. It provides high performance LoRaWANTM connectivity compatible with Helium LongFiTM protocol. Built-in Bluetooth and Wifi connectivity enable easy-to-use onboarding and hotspot monitoring.
| Start date | End date | |
|---|---|---|
|
01/06/2022 |
Current batch |
31/07/2022 |
|
01/08/2022 |
Second batch |
30/09/2022 |
|
01/11/2022 |
Third batch |
31/12/2022 |
TECHNICAL SPECIFICATION |
|
|---|---|
|
Outdoor |
No |
|
Processor |
Broadcom BCM2711 quad-core Cortex® A72 (ARM v8) 64-bit SoC @ 1.5GHz |
|
RAM Memory |
2 GB RAM LPDDR4-3200 SDRAM |
|
Flash Memory |
32 GB eMMC |
|
LAN Connection |
Ethernet RJ45 1000 |
|
LoRaWAN® connectivity |
EMB-LR1302/3-mPCIe (EU 863-870 MHz) – 8 LoRaWAN® Channels |
|
Backhaul connectivity |
Wi-Fi IEEE 802.11 b/g/n/ac |
|
Bluetooth |
Yes (Bluetooth 5.0) |
|
OS |
RaspiOS 64 bit |
|
Crypto Unit |
ECC608A |
|
Power Supply |
POE IEEE 802.3af or +12 VDC |
|
Antenna |
SMA Connector |
DIMENSIONS |
|
|
Length |
150mm |
|
Width |
150mm |
|
Height |
40mm |
